MAD-S
- Sensor-controlled controlled tightening, also in CCW direction
- Torque range 70-7.000 Nm
- Total accuracy of ±1,0 %
- Torque Check Function
- Documentation System
- Automatic load release
- Integrated bolt position lighting
- Password protected access levels
- Menu language selectable
- Saved presets
- Field calibration
- Bolt counter
- Limit value monitoring
- Release torque displayed
- Smart meter for life and maintenance cycle
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MAD 7-S | ¾" | 70 | 700 | 21 | 4,3* | 311 | 63 | 71 | 257 |
| MAD 14-S | ¾" | 140 | 1.400 | 10 | 4,3* | 311 | 63 | 71 | 257 |
| MAD 20-S | 1" | 200 | 2.000 | 6 | 4,9* | 321 | 69 | 70 | 254 |
| MAD 40-S | 1" | 400 | 4.000 | 3 | 7,2** | 337 | 81 | 81 | 257 |
| MAD 70-S | 1½" | 700 | 7.000 | 2 | 9,8** | 362 | 95 | 95 | 267 |
*Weight incl. battery 5.2 Ah (0,7 kg)
** Weight incl. battery 8.0 Ah (1,0 kg)

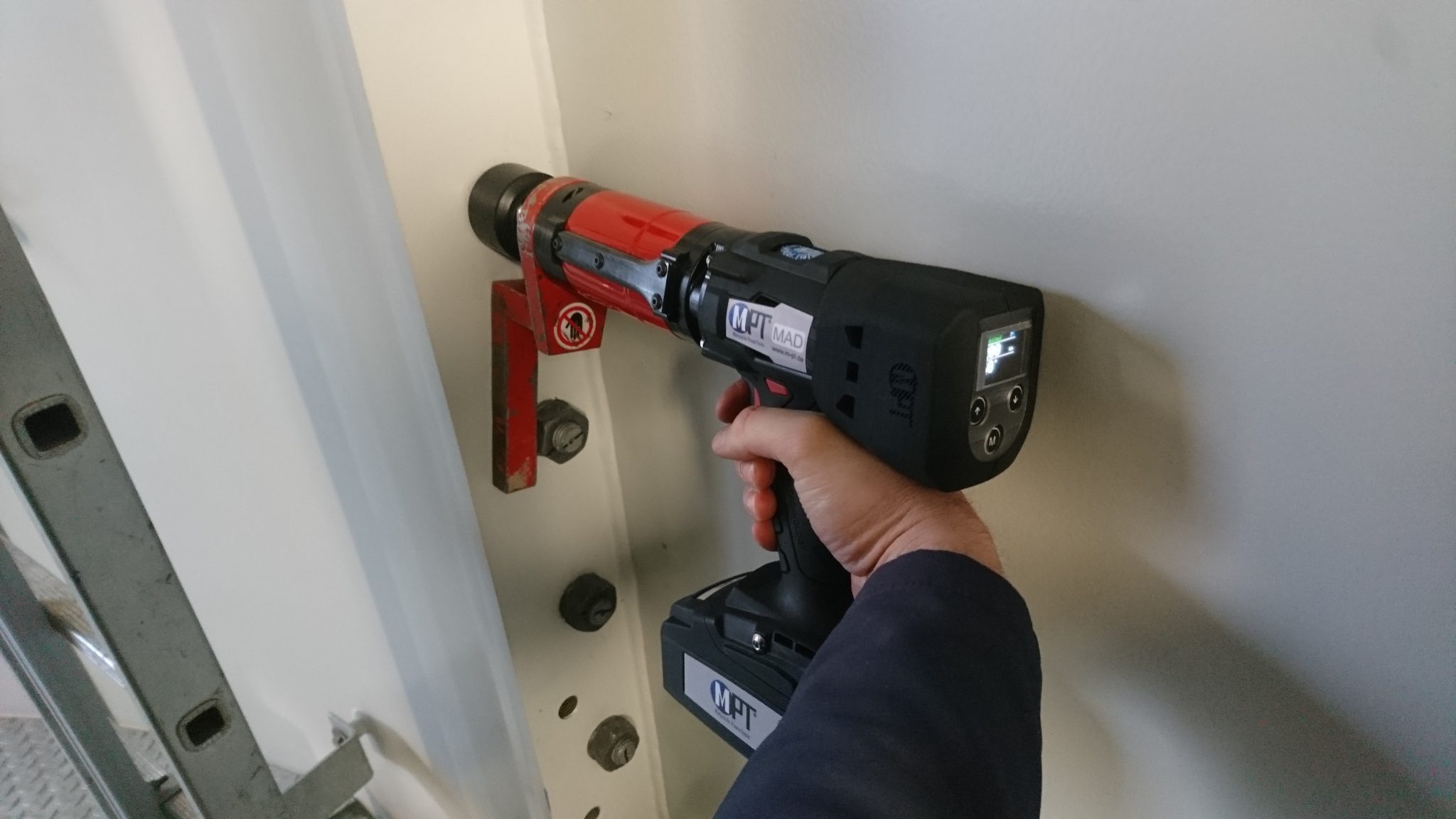

Our battery-powered torque wrench MAD-S has a built-in torque sensor at the gearbox output and shuts-off precisely by this sensor. Thereby the tool is insensitive to environmental influences, such as friction, temperature or joint hardness. A very important safety feature is the shutdown according to torque / angle, also in counter-clockwise rotation. With this torque wrench one can tighten bolts by category A according to VDI/VDE 2862-2. Due to the brushless electric motor, the lifetime of the tool is increased. Our MAD-S is especially suitable for maintenance work. With an integrated, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. On custom demand the tool can be programmed with individual parameters. Each torque wrench comes fully calibrated with documentation system, torque check function, bluetooth adaptor, reaction arm and 2x retaining ring, 2x battery, quick battery charger and manual in a storage case.
Options
- Software integration into workerguidance systems PG(CSP), BoltPilot®, ProTight™, and others
- Li-HD battery with 8.0 Ah
ACCESSORIES
Scope of delivery
- Battery operated torque wrench MAD-S
- Reaction arm with two retaining rings
- Two Lithium-ion batteries with 5,2 Ah/18 V
- Battery charger
- Torque Check Function
- Documentation System
- Calibration certificate
- Operation manual
- Tool case
