MED 90°
- Torque/angle controlled shut-off
- Repeatability ±3,0 %
- Angular gear for hard-to-reach places
- Torque Check Function for maintenance optional
- Multi-user level password protection
- Digital setpoint adjustment for high torque accuracy
- Torque control in anticlockwise rotation reduces transmission damages
- Intelligent counter for life cycle and maintenance
- Very short assembly times due to continuous torque build-up
- Custom programming optionally
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MED 6-90° | ¾" | 65 | 650 | 28 | 4,7 | 152 | 63 | 73 | 390 |
| MED 14-90° | ¾" | 140 | 1.400 | 13 | 5,3 | 176 | 63 | 73 | 390 |
| MED 34-90° | 1" | 340 | 3.400 | 5,5 | 7,5 | 224 | 77 | 77 | 400 |
| MED 34-2-90° | 1" | 340 | 3.400 | 7,5 | 7,5 | 224 | 77 | 77 | 400 |
| MED 40-90° | 1" | 400 | 4.000 | 3,4 | 7,7 | 212 | 81 | 81 | 400 |
| MED 45-90° | 1" & 1½" | 450 | 4.500 | 3 | 9,5 | 252 | 86 | 86 | 404 |
| MED 55-90° | 1½" | 1.400 | 5.500 | 2,8 | 10,4 | 245 | 95 | 95 | 409 |
| MED 70-90° | 1½" | 1.400 | 7.000 | 1 | 10,4 | 245 | 95 | 95 | 409 |
| MED 110-90° | 1½" | 2.100 | 11.000 | 1,2 | 13,6 | 269 | 108 | 108 | 415 |

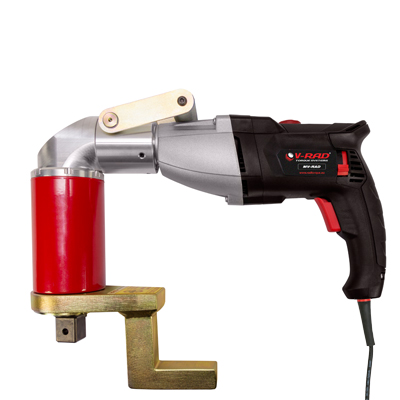

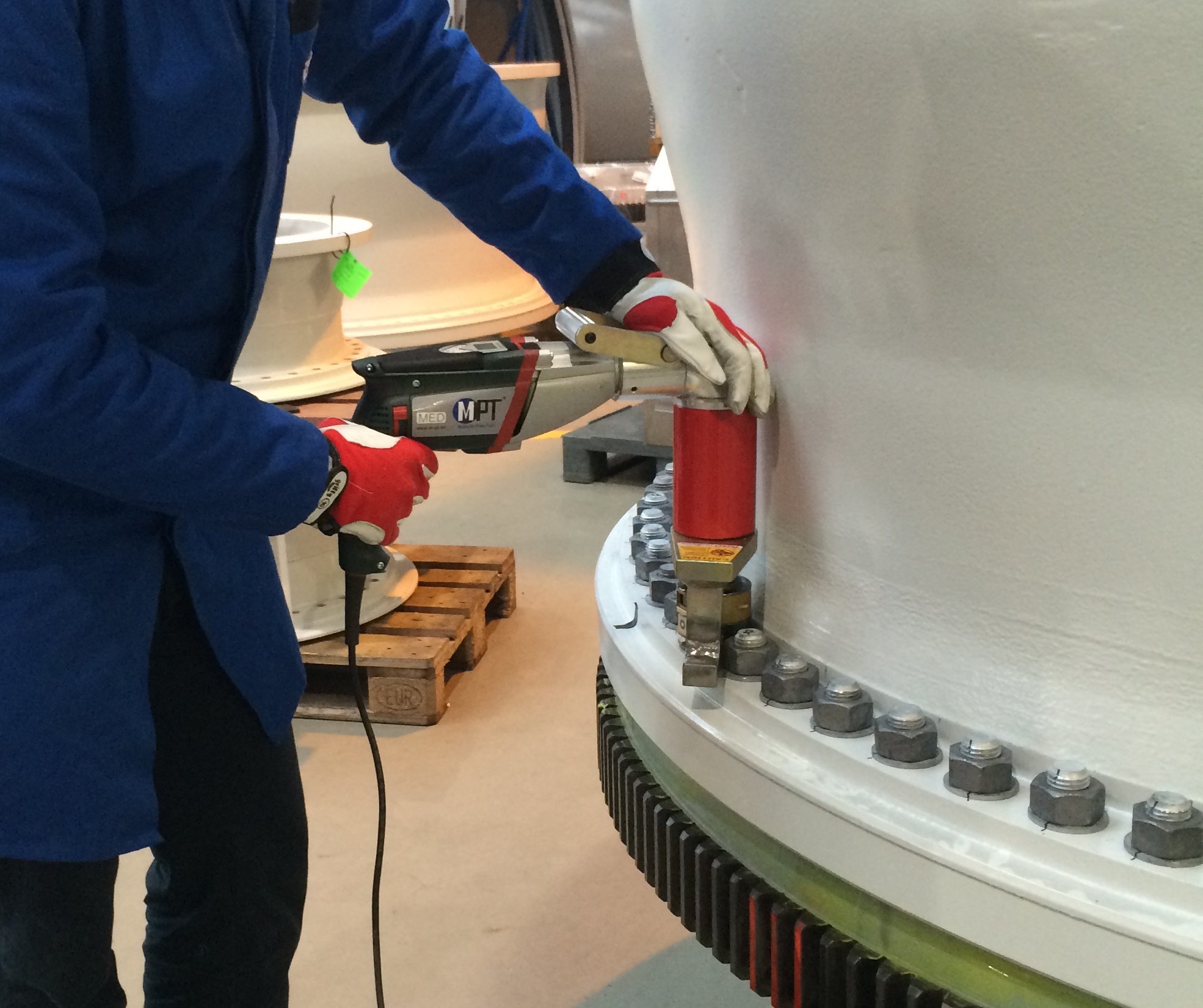

Our new electric torque wrench series MED 90° is designed to provide a high degree of accuracy. Due to the angled swivelling gearbox the tool is ideal for applications where bolts are hard to reach. The torque can be set by a membrane key control. A very important safety feature is the controlled loosening at counter-clockwise rotation. Gearbox damages are reduced thereby. The MED 90° can optionally be equipped with the Documentation System. Our MED 90° is especially suitable for maintenance work. With an optional, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. On custom demand the MED 90° can be programmed with individual parameters. Each torque wrench comes with a reaction arm and 2x retaining ring, calibration certificate and manual in a storage case.
Options
- Torque Check Function
- Documentation System
- Version as a 120 V machine
- ProTight™ worker guidance system
- BoltPilot®
ACCESSORIES
Scope of delivery
- Electric torque wrench MED 90°
- Reaction arm with two retaining rings
- Calibration certificate
- Operation manual
- Tool case
