E-RAD BLU
- Torque/angle controlled shut-off
- Repeatability ±3,0 %
- Fastest torque wrench of its kind in the world
- Data logging and tool management features
- Multi-user level password protection
- Operation by μLCD-touchscreen
- Bluetooth field calibration with the Smart Socket
- One controller can be used with all models wrenches
- Integrated cooling system for continuous operation

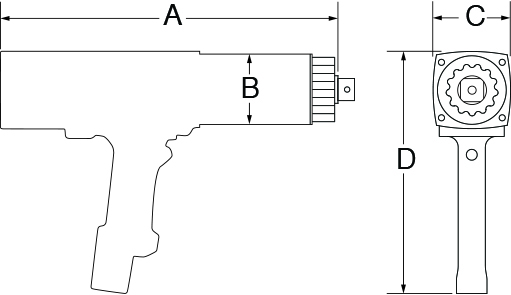

| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| E-RAD BLU 950 | ¾" | 135 | 950 | 33 | 5,5 | 340 | 63 | 77 | 265 |
| E-RAD BLU 2000 | 1" | 270 | 2.030 | 18 | 5,9 | 337 | 69 | 77 | 265 |
| E-RAD BLU 3400 | 1" | 340 | 3.400 | 9,4 | 7,8 | 379 | 77 | 77 | 265 |
| E-RAD BLU 4000 | 1" | 678 | 4.067 | 8,5 | 11,0 | 426 | 86 | 89 | 283 |
| E-RAD BLU 4500 | 1½" | 678 | 4.500 | 8,5 | 11,0 | 426 | 86 | 89 | 283 |
| E-RAD BLU 8000 | 1½" | 1.385 | 8.100 | 4 | 13,6 | 422 | 101 | 101 | 290 |
| E-RAD BLU 10K | 1½" | 2.034 | 10.170 | 3,2 | 15,0 | 442 | 108 | 108 | 293 |
| E-RAD BLU 15K | 1½" | 4.050 | 15.000 | 2,3 | 20,1 | 466 | 127 | 127 | 302 |
| E-RAD BLU 16.5K | 2½" | 4.050 | 16.500 | 2,3 | 20,1 | 466 | 127 | 127 | 302 |
The precision torque wrench series E-RAD BLU is designed to provide a high degree of accuracy and advanced data logging for high torque assembly applications. Every controller can be used in combination with multiple models wrenches. The built in bluetooth unit allows the torque wrench to communicate with the Smart Socket directly. Compared to other torque systems, such as hydraulic torque wrenches, the electric tool reduces assembly times by up to 60 %. Each torque wrench comes with a reaction arm and 2x retaining ring, Documentation System, calibration certificate and user manual in a storage case.
Options
- Control unit with 120 V
- Cable length 7,6 m (Other lengths possible on request!)
- ProTight™ worker guidance system
ACCESSORIES

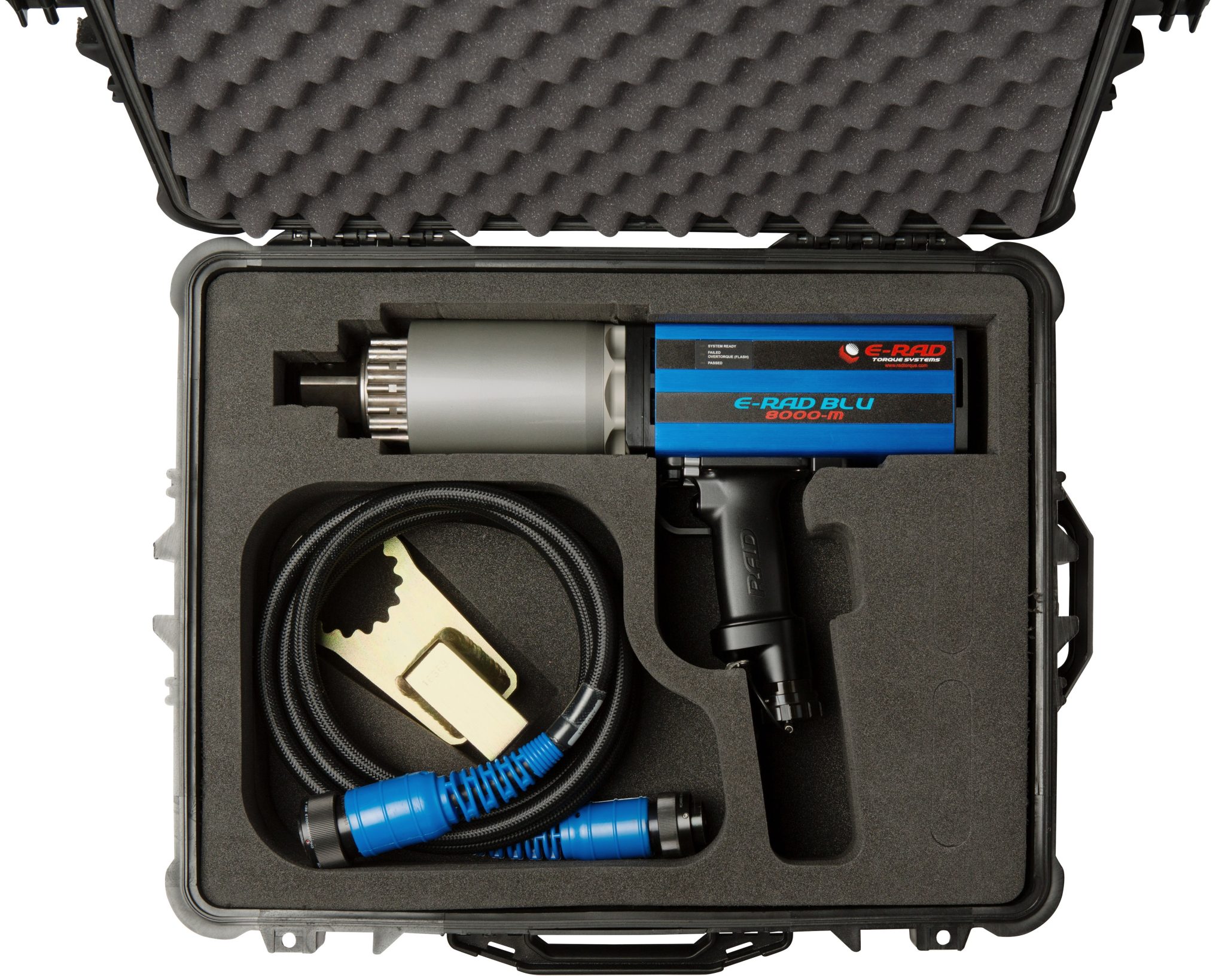

Scope of delivery
- Electric torque wrench E-RAD BLU
- Control unit with 120 V
- Control cable 4,6 m
- Reaction arm with two retaining rings
- Documentation System
- Calibration certificate
- Operation manual
- Tool case
