MV-RAD (MED)
- Torque/angle controlled shut-off
- Torque range 65-11.000 Nm
- Repeatability ±3,0 %
- Torque Check Function for maintenance optional
- Multi-user level password protection
- Digital setpoint adjustment for high torque accuracy
- Torque control in counter-clockwise rotation reduces transmission damages
- Intelligent counter for life cycle and maintenance
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MV-RAD 6 | ¾" | 65 | 650 | 38 | 3,9 | 390 | 63 | 73 | 209 |
| MV-RAD 14 | ¾" | 140 | 1.400 | 11 | 4,6 | 433 | 63 | 73 | 209 |
| MV-RAD 14K | ¾" | 140 | 1.400 | 8,5 | 3,8 | 310 | 63 | 73 | 206 |
| MV-RAD 20K | 1" | 200 | 2.000 | 6,3 | 4,0 | 310 | 69 | 73 | 206 |
| MV-RAD 34 | 1" | 340 | 3.400 | 4,2 | 6,7 | 465 | 77 | 77 | 216 |
| MV-RAD 34K | 1" | 340 | 3.400 | 3,5 | 5,8 | 340 | 77 | 77 | 206 |
| MV-RAD 40 | 1" | 400 | 4.000 | 5 | 6,7 | 464 | 81 | 81 | 219 |
| MV-RAD 40K | 1" | 600 | 4.000 | 3 | 6,2 | 310 | 81 | 81 | 203 |
| MV-RAD 45 | 1" & 1½" | 450 | 4.500 | 2 | 8,8 | 495 | 86 | 86 | 221 |
| MV-RAD 70 | 1½" | 700 | 7.000 | 1,5 | 9,5 | 429 | 95 | 95 | 226 |
| MV-RAD 80 | 1½" | 1.200 | 8.000 | 1,5 | 11,3 | 492 | 101 | 101 | 228 |
| MV-RAD 110 | 1½" | 2.100 | 11.000 | 1 | 13,1 | 510 | 108 | 108 | 232 |

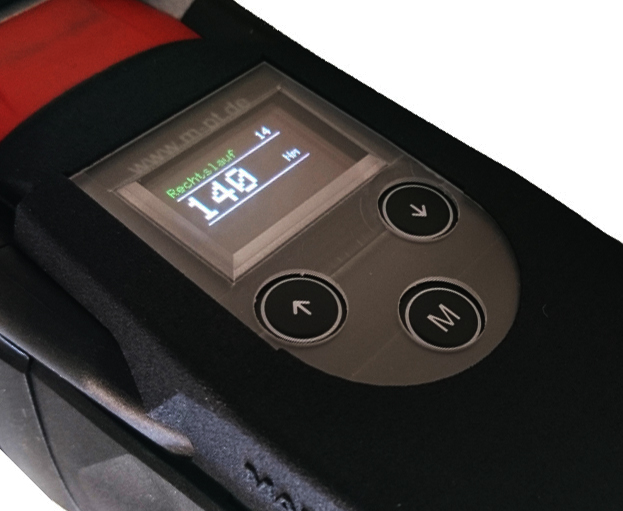

The electric torque wrench series MV-RAD is ideal for applications where high torque precision is assumed. The torque can be set digitally by a membrane key control. A very important safety feature is the controlled loosening at counterclockwise rotation. Gearbox damages are reduced thereby. The MV-RAD can optionally be equipped with the Documentation System. Our MV-RAD is especially suitable for maintenance work. With an optional, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. On custom demand the MV-RAD can be programmed with individual parameters. Each torque wrench comes with a reaction arm and 2x retaining ring, calibration certificate and user manual in a storage case.
Options
- Torque Check Function
- Documentation System
- Version as a 120 V machine
- ProTight™ worker guidance system
- BoltPilot®
ACCESSORIES

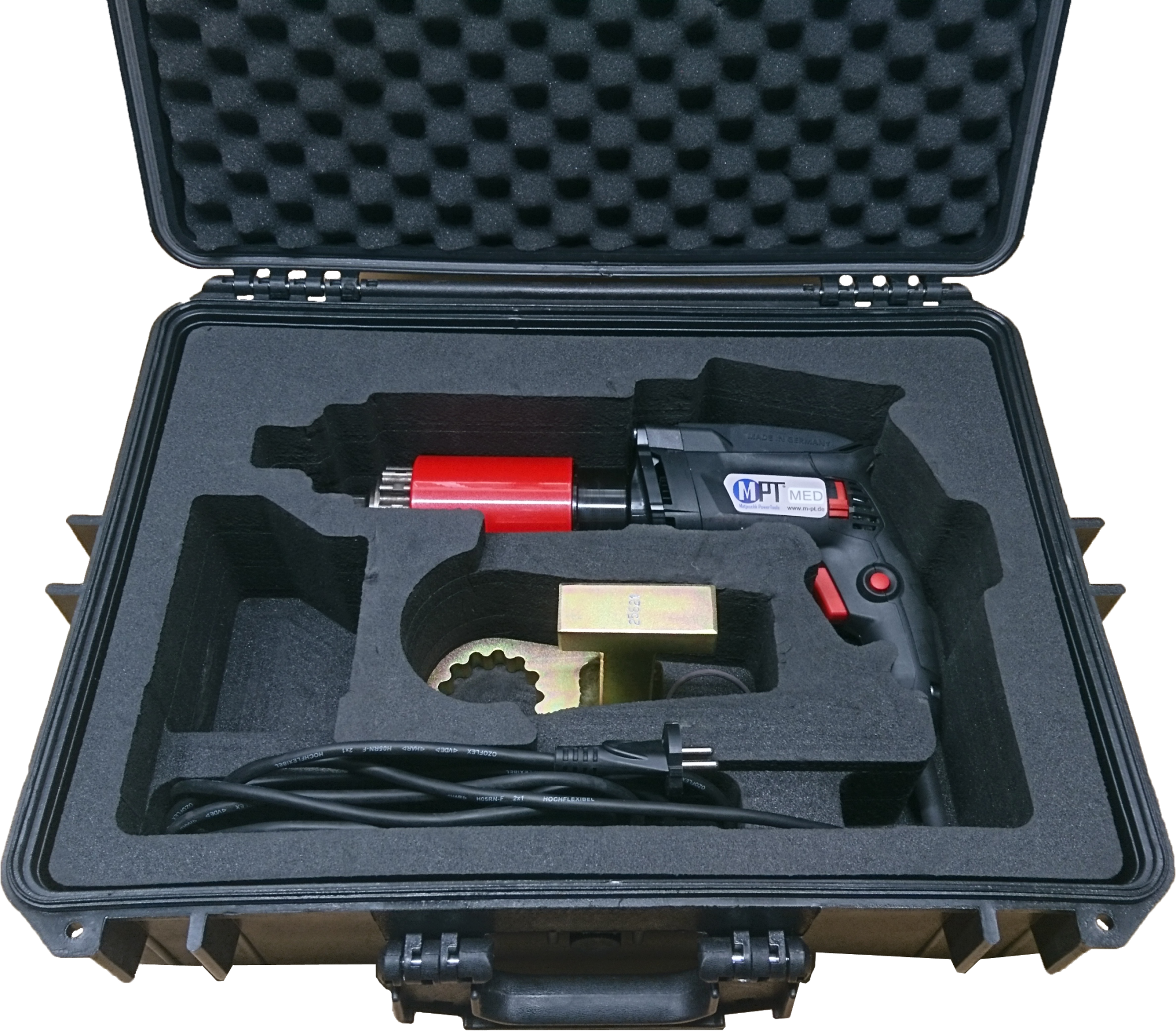

Scope of delivery
- Electric torque wrench MV-RAD (MED)
- Reaction arm with two retaining rings
- Calibration certificate
- Operation manual
- Tool case
