B-RAD Xtreme
- Digital torque setting
- Torque range 340-15.000 Nm
- Repeatability ±4,0 %
- Brushless electric motor
- Automatic load release
- LED display with 4-button-operation
- Hand guard on the trigger
- Selectable two-hand operation
- Latch lock to protect battery
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| B-RAD X 4000 | 1" | 340 | 4.000 | 3,9 | 7,9* | 298 | 83 | 89 | 349 |
| B-RAD X 7000 | 1½" | 700 | 7.000 | 2,4 | 10,5** | 318 | 95 | 95 | 362 |
| B-RAD X 10K | 1½" | 1.100 | 10.850 | 1,6 | 13,8** | 349 | 118 | 118 | 369 |
| B-RAD X 15K | 1½" | 1.500 | 15.000 | 1,2 | 19,3** | 387 | 127 | 127 | 375 |
*Weight incl. battery 5.2 Ah (0,7 kg)
** Weight incl. battery 8.0 Ah (1,0 kg)
The battery torque wrench series B-RAD X is digitally adjustable with 4-button operation. With a repeatability of ±4,0 % in a torque range of 340-15.000 Nm, the B-RAD X is a global innovation for the industry with high torque screw connections. The B-RAD X has innovative accessories as standard, which increases work safety. These include the hand protection on the trigger, the selectable two-hand operation and a battery lock to protect against falling batteries. The electric motor is brushless. Thereby the lifetime of the tool is increased, because carbon brushes and slip rings do not have to be exchanged. The B-RAD X is delivered with two 8.0 Ah batteries and a charger in a waterproof tool case.
Options
- Lithium-HD battery with 10,0 Ah
ACCESSORIES

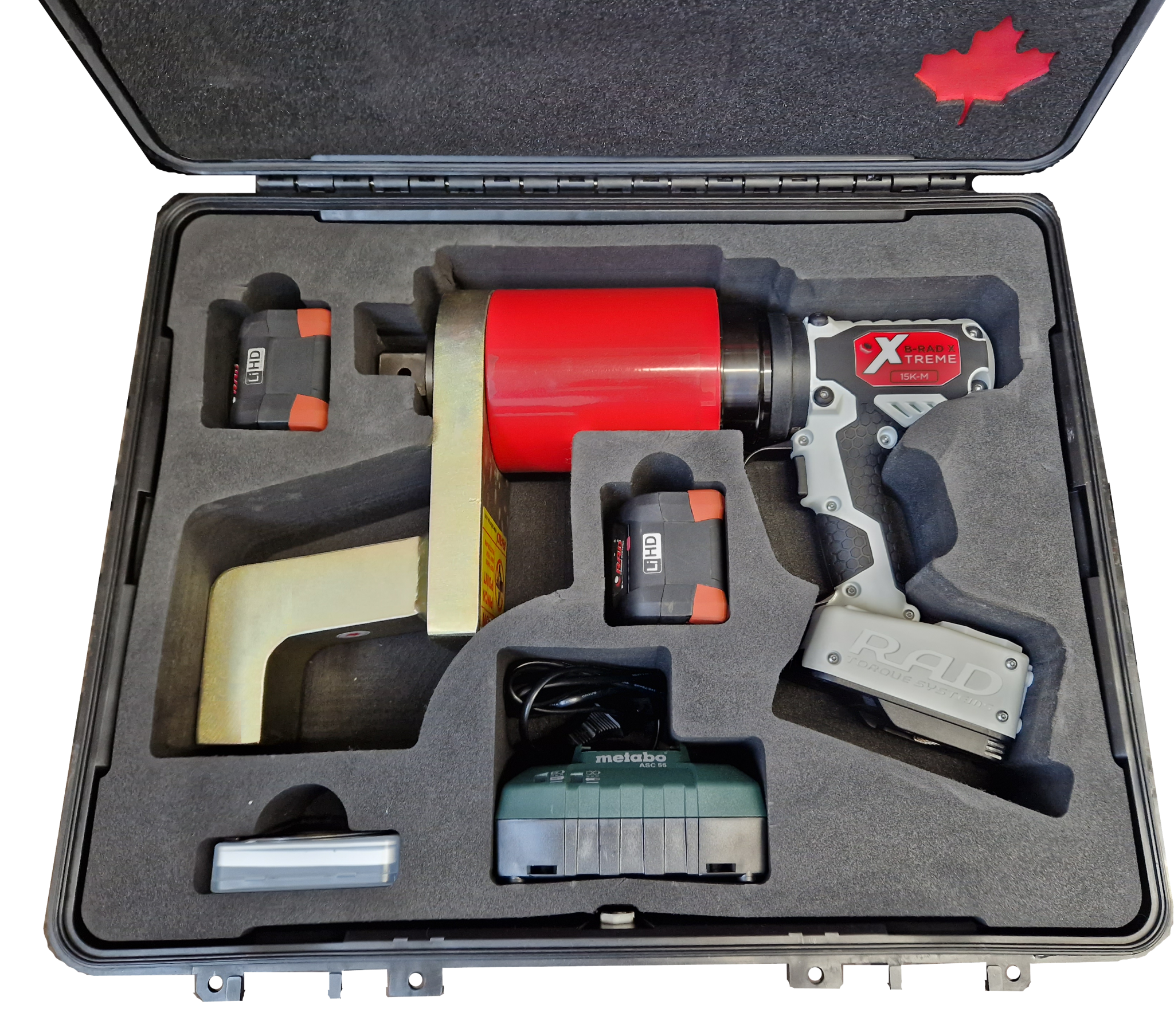

Scope of delivery
- Battery operated torque wrench B-RAD X
- Reaction arm with two retaining rings
- Two Lithium-ion batteries with 8,0 Ah/18 V
- Battery charger
- Calibration certificate
- Operation manual
- Tool case
