MAD Offset
- Torque/angle controlled tightening, also in CCW direction
- Offset gearbox for difficult-to-reach spaces
- Torque range 30-7.000 Nm
- Repeatability ±2,8 %
- Brushless electric motor
- Automatic load release
- Integrated bolt position lighting
- Password protected access levels
- Menu language selectable
- Saved presets
- Field calibration
- Bolt counter
- Limit value monitoring
- Release torque displayed
- Smart meter for life and maintenance cycle
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MAD 3 Offset | ½“ & ¾“ | 30 | 300 | 32 (47) | 3,6* | 110 | 63 | 51 | 258 |
| MAD 7 Offset | ¾“ | 70 | 700 | 21 | 3,9* | 126 | 63 | 51 | 261 |
| MAD 14 Offset | ¾“ | 140 | 1.400 | 10 | 3,9* | 126 | 63 | 51 | 270 |
| MAD 14-2 Offset | ¾“ | 280 | 1.400 | 71 | 4,7* | 174 | 63 | 51 | 309 |
| MAD 20 Offset | 1“ | 200 | 2.000 | 6 | 4,4* | 139 | 69 | 51 | 257 |
| MAD 20-2 Offset | 1“ | 200 | 2.000 | 19 | 5,3* | 193 | 69 | 51 | 328 |
| MAD 34 Offset | 1" | 400 | 3.400 | 3 | 6,4** | 180 | 81 | 51 | 315 |
| MAD 40 Offset | 1“ | 400 | 4.000 | 3 | 6,4** | 180 | 81 | 51 | 315 |
| MAD 40-2 Offset | 1“ | 400 | 4.000 | 19 | 7,1** | 232 | 81 | 51 | 367 |
| MAD 70 Offset | 1½“ | 1.000 | 7.000 | 2 | 9,2** | 190 | 95 | 51 | 325 |
*Weight incl. battery 5.2 Ah (0,7 kg)
** Weight incl. battery 8.0 Ah (1,0 kg)

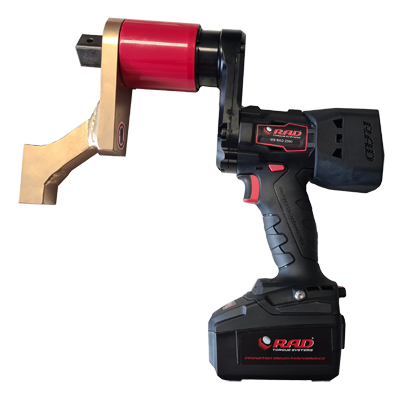

The battery-powered torque wrench of the MAD Offset series has a very special design. With the axially offset gearbox, otherwise inaccessible bolting spaces can be easily reached. The torque wrench has a repeatability of ±2,8 % and a torque range of 30-7.000 Nm, and is suitable for many applications, e.g. for machine and steel construction and for wheel assembly. A very important safety feature is the shutdown according to torque/angle – also in counter-clockwise rotation. The MAD Offset can optionally be equipped with the Documentation System. With this program, the torque wrench is able to record all tightening and loosening processes. If there is no need for a Documentation System, the MB-RAD Offset Light is an alternative. Our MAD Offset is especially suitable for maintenance work. With an optional, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. On custom demand the MAD Offset can be programmed with individual parameters. With a large number of menu languages, the MAD Offset can be used worldwide. Each torque wrench comes with a reaction arm and 2x retaining ring, 2x battery, battery charger, calibration certificate and user manual in a storage case.
Options
- Torque check program (except MAD 3 and torque wrenches with 2 speeds)
- Documentation system
- Software integration into workerguidance systems PG(CSP), BoltPilot®, ProTight™, and others
- Li-HD battery with 8.0 Ah
ACCESSORIES
Scope of delivery
- Battery operated torque wrench MAD Offset
- Reaction arm with two retaining rings
- Two Lithium-ion batteries with 5,2 Ah/18 V
- Battery charger
- Calibration certificate
- Operation manual
- Tool case
