MAD (MB-RAD)
- Torque/angle controlled tightening, also in CCW direction
- Torque range 30-7.000 Nm
- Repeatability ±2,8 %
- Brushless electric motor
- Automatic load release
- Integrated bolt position lighting
- Password protected access levels
- Menu language selectable
- Saved presets
- Field calibration
- Bolt counter
- Limit value monitoring

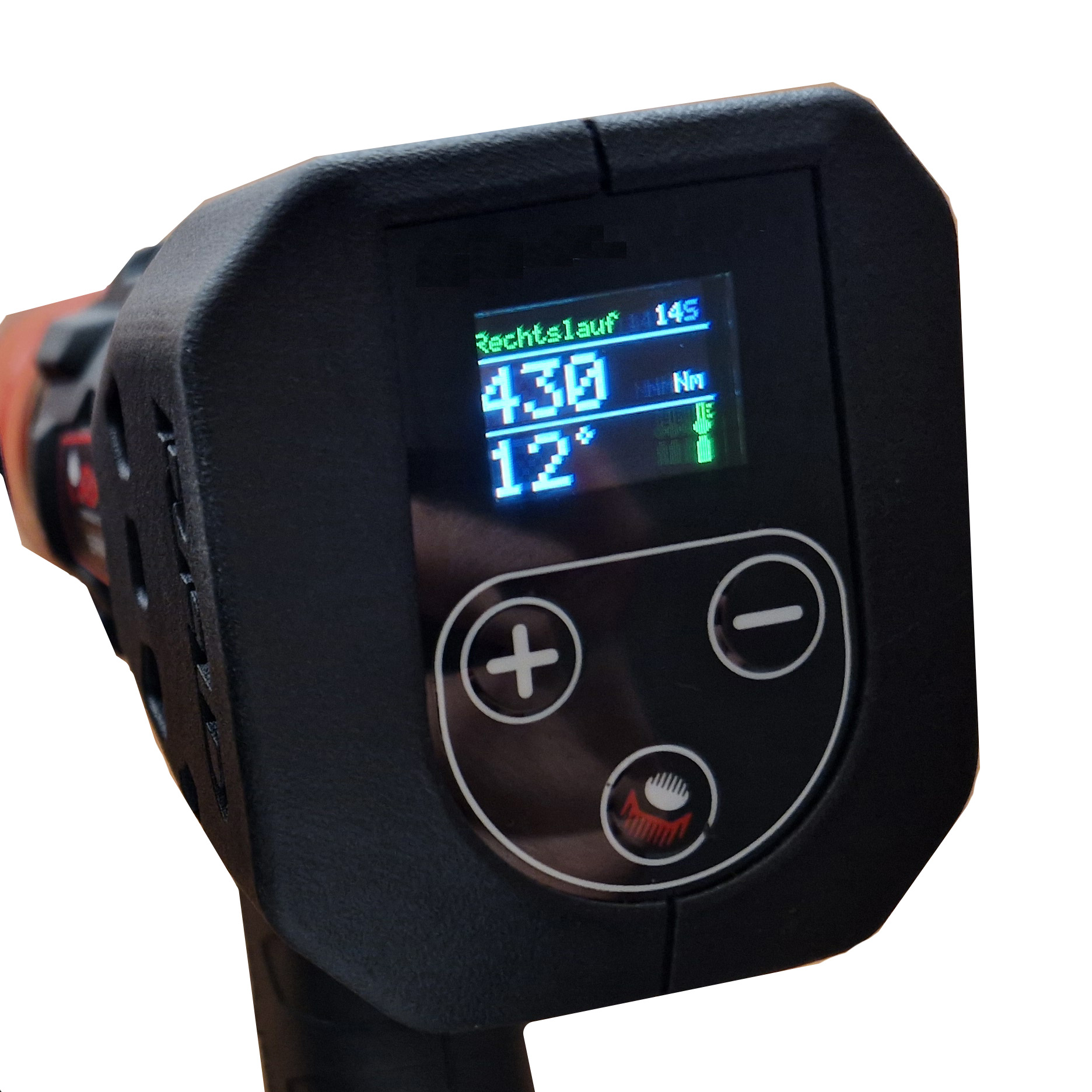

- Release torque displayed
- Smart meter for life and maintenance cycle
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MAD 3 | ½" & ¾" | 30 | 300 | 32 (47) | 3,2* | 258 | 63 | 69 | 262 |
| MAD 7 | ¾" | 70 | 700 | 21 | 3,5* | 261 | 63 | 69 | 262 |
| MAD 14 | ¾" | 140 | 1.400 | 10 | 3,5* | 261 | 63 | 69 | 262 |
| MAD 14-2 | ¾" | 280 | 1.400 | 71 | 4,3* | 309 | 63 | 69 | 262 |
| MAD 20 | 1" | 200 | 2.000 | 6 | 4,0* | 274 | 69 | 69 | 262 |
| MAD 20-2 | 1" | 200 | 2.000 | 19 | 4,9* | 328 | 69 | 69 | 262 |
| MAD 34 | 1" | 400 | 3.400 | 3 | 6,0** | 315 | 81 | 81 | 268 |
| MAD 40 | 1" | 400 | 4.000 | 3 | 6,0** | 315 | 81 | 81 | 268 |
| MAD 40-2 | 1" | 400 | 4.000 | 19 | 6,7** | 367 | 81 | 81 | 268 |
| MAD 70 | 1½" | 1.000 | 7.000 | 2 | 8,8** | 325 | 95 | 95 | 275 |
*Weight incl. battery 5.2 Ah (0,7 kg)
** Weight incl. battery 8.0 Ah (1,0 kg)

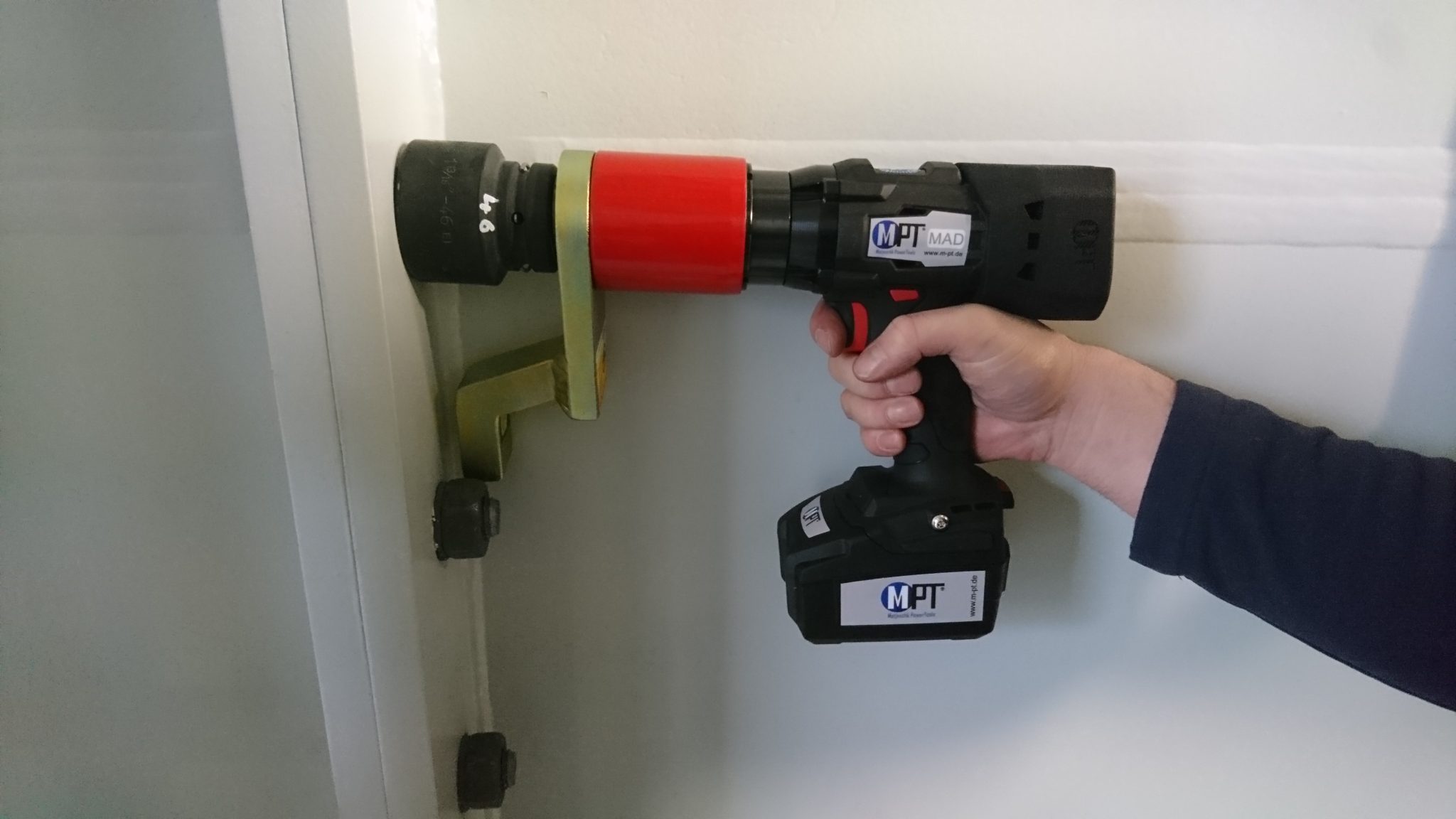

The battery-operated torque wrench of the MAD series can be used for almost all bolting applications. With a repeatability of ±2,8 % and a torque range of 30-7.000 Nm, the MAD is suitable for many applications, e.g. for machine and steel construction, for wheel assembly, but also as a valve lathe. A very important safety feature is the shutdown according to torque/angle – also in counter-clockwise rotation. The MAD can optionally be equipped with the Documentation System. With this program, the torque wrench is able to record all tightening and loosening processes. Our MAD is especially suitable for maintenance work. With an integrated, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. On custom demand the MAD can be programmed with individual parameters. The crane manufacturer LIEBHERR has approved the MAD for crane assembly. Each torque wrench comes with a reaction arm and 2x retaining ring, 2x battery, battery charger, calibration certificate and user manual in a storage case.
Options
- Torque check program (except MAD 3 and torque wrenches with 2 speeds)
- Documentation system
- Software integration into workerguidance systems PG(CSP), BoltPilot®, ProTight™, and others
- Li-HD battery with 8.0 Ah
ACCESSORIES

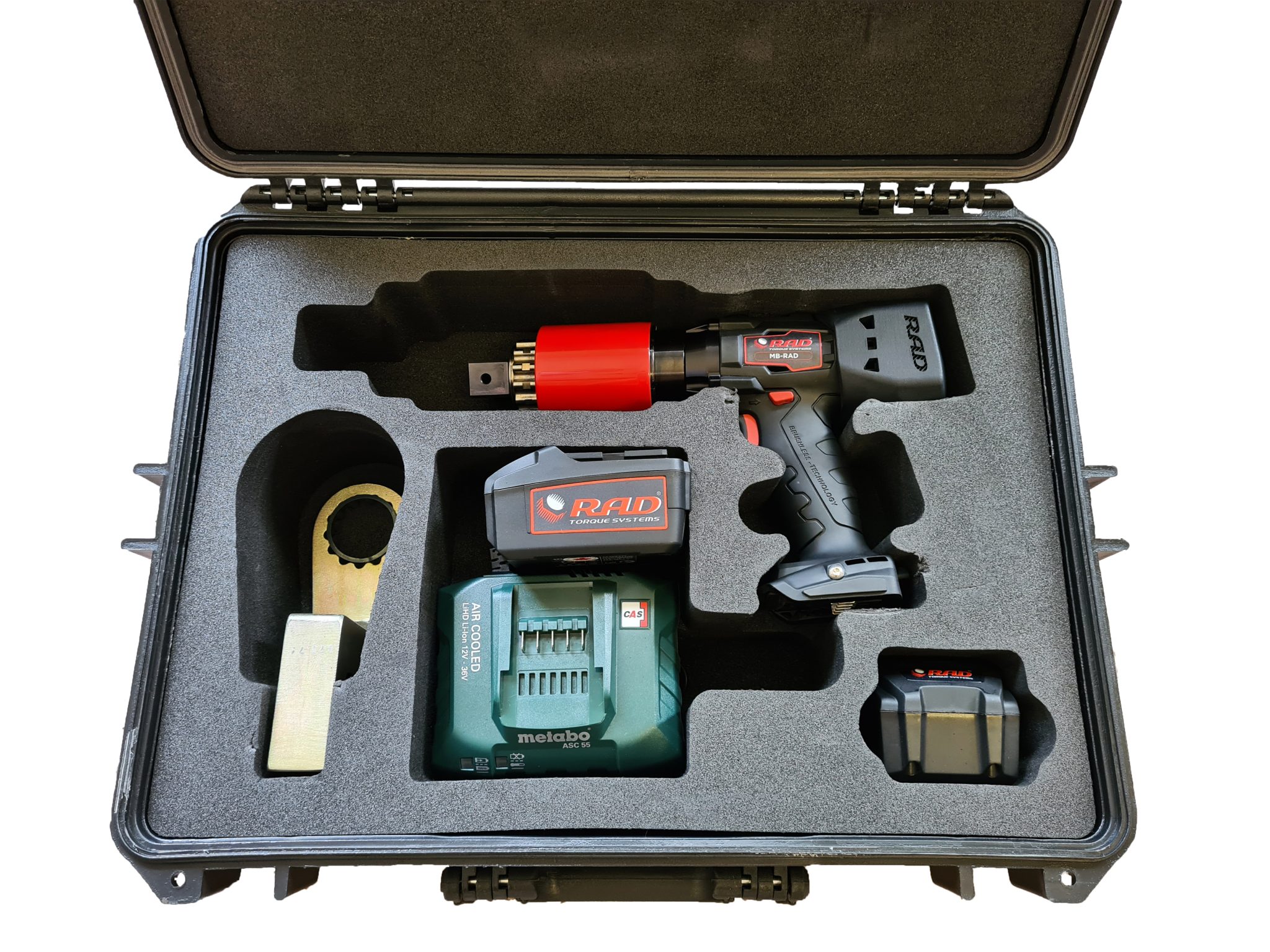

Scope of delivery
- Battery operated torque wrench MAD
- Reaction arm with two retaining rings
- Two Lithium-ion batteries with 5,2 Ah/18 V
- Battery charger
- Calibration certificate
- Operation manual
- Tool case
