MAD 90° Offset
- Torque/angle controlled tightening, also in CCW direction
- Angular gear as offset for hard-to-reach places
- Torque range 600-4.000 Nm
- Repeatability ±2,8 %
- Brushless electric motor
- Automatic load release
- Integrated bolt position lighting
- Password protected access levels
- Menu language selectable
- Saved presets
- Field calibration
- Bolt counter
- Limit value monitoring
- Release torque displayed
- Smart meter for life and maintenance cycle
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MAD 40-90° Offset | 1" | 600 | 4.000 | 1,7 | 11,5** | 175 / 235* | 81 | 81 | 370 |
* With special socket wrench size 60 mm.
*Weight incl. battery 5.2 Ah (0,7 kg)
** Weight incl. battery 8.0 Ah (1,0 kg)

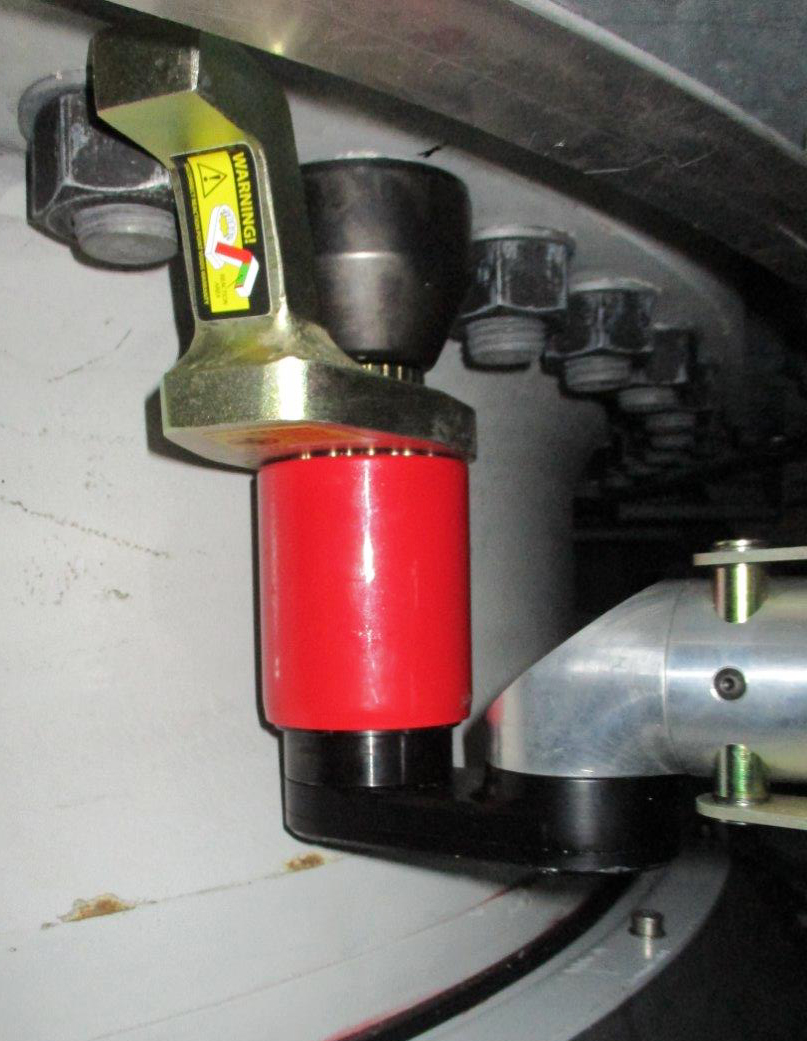

The battery-operated torque wrench of the MAD 90° Offset series can be used for almost all bolting applications. A rotation angle tightening is possible with this device. The MAD 90° Offset can optionally be equipped with the Documentation System. Our battery torque wrench is especially suitable for maintenance work. With an optional, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. On custom demand the MAD 90° Offset can be programmed with individual parameters.
Options
- Torque check program (except torque wrenches with 2 speeds)
- Documentation system
- Software integration into workerguidance systems PG(CSP), BoltPilot®, ProTight™, and others
- Li-HD battery with 8.0 Ah
ACCESSORIES
Scope of delivery
- Battery-operated torque wrench MAD 90° Offset
- Reaction arm with two retaining rings
- Two Lithium-ion batteries with 5,2 Ah/18 V
- Battery charger
- Calibration certificate
- Operation manual
- Tool case
