E-RAD BLU-S
- Torque/angle controlled shut-off
- Repeatability ±2,0 %
- Fastest torque wrench of its kind in the world
- Data logging and tool management features
- Multi-user level password protection
- Operation by μLCD-touchscreen
- Bluetooth field calibration with the Smart Socket
- One controller can be used with all models wrenches
- Integrated cooling system for continuous operation
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| E-RAD BLU 950-S | ¾" | 135 | 950 | 33 | 5,5 | 340 | 71 | 77 | 265 |
| E-RAD BLU 3400-S | 1" | 340 | 3.400 | 9,4 | 7,8 | 414 | 84 | 84 | 265 |
| E-RAD BLU 4000-S | 1" | 678 | 4.067 | 8,5 | 11,0 | 426 | 94 | 94 | 283 |
| E-RAD BLU 8000-S | 1½" | 1.385 | 8.100 | 4 | 15,0 | 456 | 109 | 109 | 290 |
| E-RAD BLU 10K-S | 1½" | 2.034 | 10.170 | 3,2 | 15,0 | 470 | 116 | 116 | 293 |
| E-RAD BLU 15K-S | 1½" & 2½" | 4.050 | 16.500 | 2,3 | 22,6 | 500 | 133 | 133 | 298 |

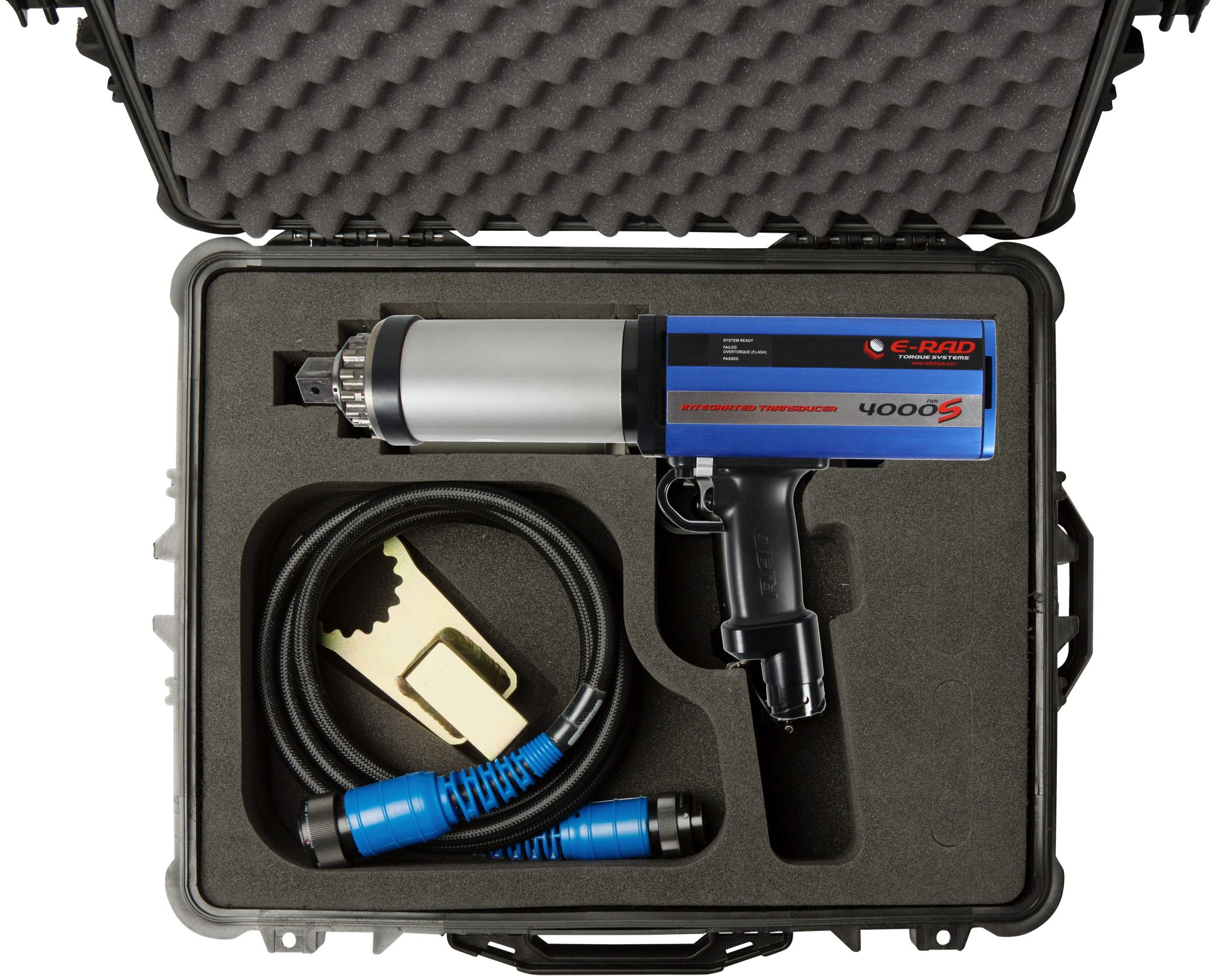

The torque wrench series E-RAD BLU-S is a sensor-controlled bolting tool. Therefore this torque wrench shuts-off with the highest possible accuracy. Every controller can be used in combination with multiple models wrenches. The built in bluetooth unit allows the torque wrench to communicate with the Smart Socket directly. Each torque wrench comes with a reaction arm and 2x retaining ring, Documentation System, calibration certificate and user manual in a storage case.
Options
- Control unit with 120 V
- Cable length 7,6 m (Other lengths possible on request!)
- ProTight™ worker guidance system
ACCESSORIES
Scope of delivery
- Electric sensor controlled E-RAD BLU-S
- Control unit with 230 V
- Control cable 4,6 m
- Reaction arm with two retaining rings
- Documentation System
- Calibration certificate
- Operation manual
- Tool case
