MV-RAD 90° Offset
- Torque/angle controlled shut-off
- Angular gear as Offset for hard-to-reach places
- Torque range 400-4.000 Nm
- Repeatability ±3,0 %
- Password protected access levels
- Menu language selectable
- Preset can be saved
- Field calibration
- Screw counter
- Limit value monitoring
- Loosening torque indicator
- Torque control in counter-clockwise rotation
- Smart Life and Maintenance Cycle Meter
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MV-RAD 40-90° Offset | 1" | 400 | 4.000 | 3,5 | 12,0 | 180 | 81 | 81 | 480 |

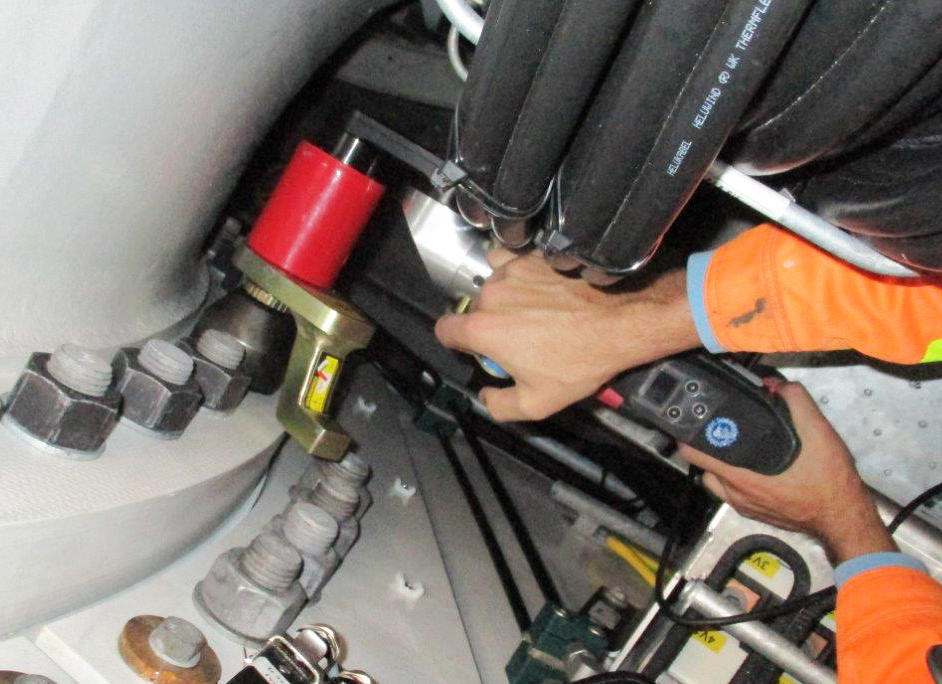

Our new electric torque wrench series MV-RAD 90° Offset is designed to provide a high degree of accuracy. The angled gear as an Offset makes the tool ideal for applications where bolts are hard to reach. The torque can be set by a membrane key control. A very important safety feature is the controlled loosening at counterclockwise rotation. Gearbox damages are reduced thereby. The MV-RAD 90° Offset can optionally be equipped with the Documentation System. Our MV-RAD 90° Offset is especially suitable for maintenance work. With an optional, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. On custom demand the MV-RAD 90° Offset can be programmed with individual parameters.
Options
- Torque Check Function
- Documentation System
- Version as a 120 V machine
- ProTight™ worker guidance system
- BoltPilot®
ACCESSORIES
Scope of delivery
- Electric torque wrench MV-RAD 90° Offset
- Reaction arm with two retaining rings
- Calibration certificate
- Operation manual
- Tool case
