Series 7455
- Manual torque wrench with fixed ratchet
- Torque range 1-1.500Nm
- Scale accuracy ±4,0%
- Double scale in Nm/ft.lb and Nm/lb.in (sizes 5-25Nm)
- Clockwise and anti-clockwise tightening
- Audible and tactile signal when torque is reached
- Quick release safety lock for 1/4" & 1/2"
- Non-slipping metal handle
Type | Drive size | Torque [Nm] | Weight [kg] | Dimensions [mm] | ||||||
---|---|---|---|---|---|---|---|---|---|---|
min. | max. | A | B | C | D | E | F | |||
7455-5 | ¼" | 1 | 5 | 0,386 | 258 | 245 | 200 | 27 | 24 | 16 |
7455-15 | ¼" | 3 | 15 | 0,409 | 258 | 245 | 200 | 27 | 24 | 16 |
7455-20 | ¼" | 4 | 20 | 0,386 | 258 | 245 | 200 | 27 | 24 | 19 |
7455-25 | ¼" | 5 | 25 | 0,41 | 286 | 273 | 226 | 27 | 24 | 16 |
7455-60 | ⅜" | 10 | 60 | 1,135 | 393 | 376 | 326 | 34 | 30 | 20 |
7455-100 | ⅜" | 20 | 100 | 1,135 | 400 | 383 | 333 | 34 | 30 | 20 |
7455-100A | ½" | 20 | 100 | 1,29 | 414 | 395 | 345 | 43 | 41 | 26 |
7455-200 | ½" | 40 | 200 | 1,43 | 474 | 455 | 405 | 43 | 41 | 26 |
7455-300 | ½" | 60 | 300 | 1,44 | 483 | 465 | 415 | 43 | 41 | 26 |
7455-340 | ½" | 60 | 340 | 1,68 | 613 | 595 | 545 | 43 | 41 | 26 |
7455-500 | ¾" | 100 | 500 | 4,37 | 870 | 830 | 780 | 65 | 53 | 29 |
7455-800 | ¾" | 150 | 800 | 5,31 | 1.947 | 1.015 | 970 | 65 | 53 | 29 |
7455-1000 | 1" | 200 | 1.000 | 6,350 | 1.055 | 1.010 | 970 | 78 | 68 | 38 |
7455-1500 | 1" | 300 | 1.500 | 11,395 | 1.780 | 1.740 | 1.690 | 78 | 68 | 38 |
The manual torque wrench series 7455 has a fixed ratchet and is adjustable in a torque range of 1-1.500Nm. The sizes 5-25Nm have a double scale with the units Nm/ft.lb and Nm/lb.in. An audible and tactile clicking signals the reached torque. Due to the non-slipping metal handle the manual torque wrench rests comfortably in the hand and ensures easy and safe tightening as well as loosening of bolted connections.

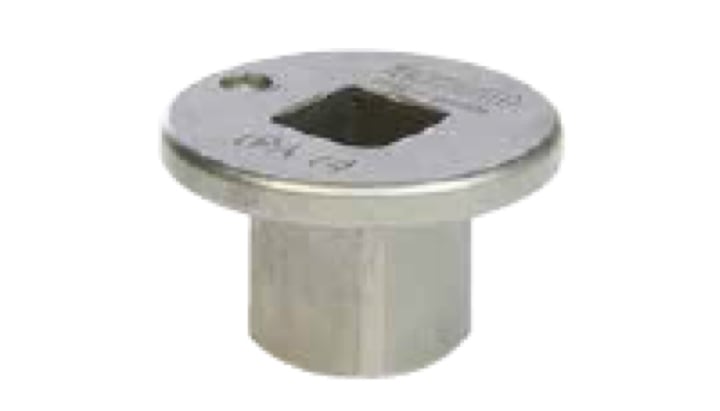

ACCESSORIES
Scope of delivery
- Manual torque wrench 7455
- Calibration certificate
- Operation manual
- Plastic pipe (up to size 340Nm) or tool case (from size 500Nm)
