SL/GX/DX-2
- Torque controlled shut-off
- Repeatability ±5,0 %
- Rapid bolting by precision mechanical, high-speed gearbox
- Torque setting by a finely graded pressure control valve
- Very robust, fast and safe
- Low noise and vibration
- Good power-to-weight ratio
- Portable FRL unit included
- Available with ATEX certification

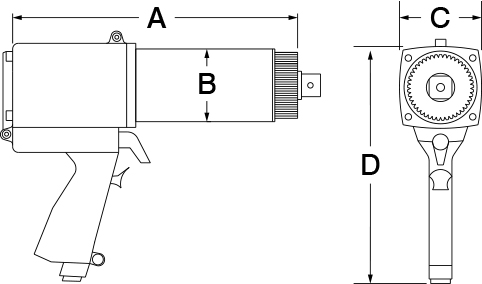

| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| 475 SL-2 | ¾" | 150 | 475 | 300 | 4,0 | 234 | 63 | 70 | 206 |
| 750 SL-2 | ¾" | 275 | 680 | 170 | 4,0 | 241 | 63 | 70 | 206 |
| 14 GX-2 | ¾" | 450 | 1.350 | 85 | 4,5 | 261 | 63 | 70 | 206 |
| 20 DX-2 | 1" | 700 | 2.000 | 50 | 4,8 | 250 | 69 | 70 | 206 |
| 34 GX-2 | 1" | 950 | 3.400 | 44 | 7,6 | 305 | 77 | 84 | 242 |
| 40 DX-2 | 1" & 1½" | 1.600 | 4.000 | 45 | 7,4 | 309 | 81 | 84 | 242 |
The high speed series SL/GX/DX-2 incorporate a precision engineered high speed gearbox designed for faster run down and quick reaction point positioning on time sensitive bolting applications. The two-speed models feature a unique full automatic gearbox design, eliminating the time consuming switch between high and low speed gear. Smooth continuous flow of controlled torque eliminates destructive hammering. At a surcharge, the pneumatic torque wrench can be delivered according to ATEX specification.
Options
- ATEX-certification on screwing device and maintenance unit

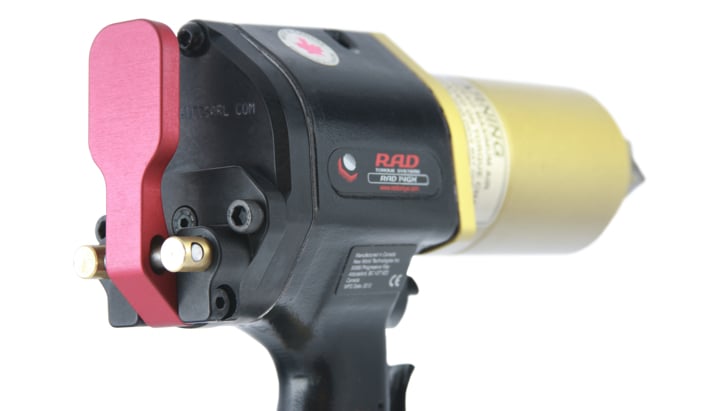

- Maintenance unit with two fixed pressure settings
- Other tubing lengths on request
ACCESSORIES
Scope of delivery
- Torque Wrench SL/GX/DX-2

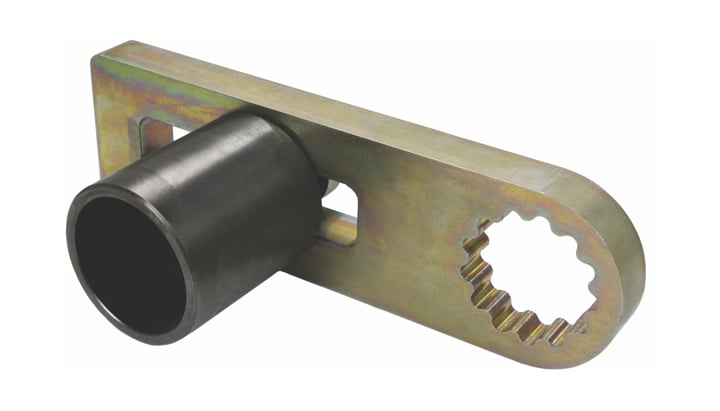

- Reaction arm with two retaining rings
- Maintenance unit incl. compressed air oil
- Compressed air tube 3,6 m
- Calibration certificate
- Operation manual
- Foldable transport case
