SL/GX/DX
- Torque controlled shut-off
- Repeatability ±5,0 %
- Torque setting by a finely graded pressure control valve
- Very robust, fast and safe
- Low noise and vibration
- Best power-to-weight ratio
- Portable FRL unit included
- Available with ATEX certification

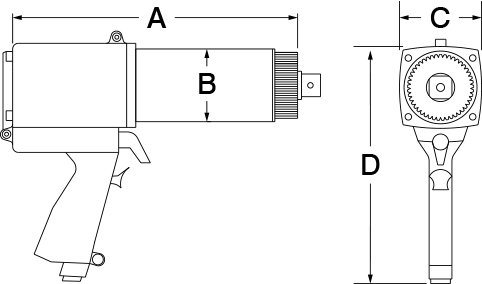

| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| 100 SL | ½" & ¾" | 35 | 100 | 275 | 2,6 | 161 | 63 | 70 | 206 |
| 275 SL | ¾" | 50 | 275 | 90 | 2,9 | 173 | 63 | 70 | 206 |
| 475 SL | ¾" | 70 | 475 | 65 | 2,9 | 173 | 63 | 70 | 206 |
| 10 GX | ¾" | 150 | 950 | 30 | 3,5 | 209 | 63 | 70 | 206 |
| 14 GX | ¾" | 275 | 1.350 | 20 | 3,5 | 209 | 63 | 70 | 206 |
| 20 DX | 1" | 400 | 2.000 | 10 | 3,9 | 205 | 69 | 70 | 206 |
| 34 GX | 1" | 700 | 3.400 | 9 | 6,1 | 246 | 77 | 84 | 242 |
| 40 DX | 1" & 1½" | 1.200 | 4.000 | 8 | 6,6 | 261 | 81 | 84 | 242 |
| 46 GX | 1" & 1½" | 1.400 | 4.600 | 12 | 9,0 | 325 | 86 | 96 | 266 |
| 70 DX | 1½" | 2.000 | 7.000 | 8 | 10,7 | 294 | 95 | 96 | 269 |
| 80 DX | 1½" | 2.700 | 8.000 | 7 | 12,5 | 348 | 101 | 101 | 269 |
| 110 DX | 1½" | 3.400 | 10.800 | 4 | 13,9 | 318 | 108 | 108 | 273 |
| 150 DX | 1½" & 2½" | 5.400 | 15.000 | 3 | 19,0 | 361 | 127 | 127 | 281 |
The pneumatic series SL/GX/DX offer the best power-to-weight ratio. The torque can be set by a finely graded pressure control valve. By continuous, even torque increase the torque will be induced ideal to the bolted assembly. Noise, vibration and thread damage, as appear to conventional impact wrenches, are prevented. At a surcharge, the pneumatic torque wrench can be delivered according to ATEX specification.
Options
- ATEX-certification on screwing device and maintenance unit
- Maintenance unit with two fixed pressure settings
- Pneumatic torque wrench with integrated torque sensor
- Other tubing lengths on request
ACCESSORIES
Scope of delivery
- Torque Wrench SL/GX/DX
- Reaction arm with two retaining rings
- Maintenance unit incl. compressed air oil
- Compressed air tube 3,6 m
- Calibration certificate
- Operation manual
- Foldable transport case
