B-RAD Offset
- Torque controlled shut-off
- Repeatability ±5,0 %
- Digital torque setting by the value of 10 Nm
- Offset gearbox for difficult to reach spaces
- Brushless electric motor
- Automatic load release
- Slim and short design
- Clockwise/anticlockwise rotation
- Lithium-ion 18V/5,2Ah battery technology (8,0 Ah optionally)
- Standard tool or tool with 2-speed automatic
- Screw position lighting optionally
| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| B-RAD 275 Offset | ½" & ¾" | 50 | 270 | 47 | 3,6* | 110 | 63 | 51 | 228 |
| B-RAD 700 Offset | ¾" | 150 | 700 | 21 | 3,9* | 126 | 63 | 51 | 231 |
| B-RAD 1400 Offset | ¾" | 300 | 1.400 | 10 | 3,9* | 126 | 63 | 51 | 231 |
| B-RAD 1400-2 Offset | ¾" | 300 | 1.400 | 71 | 4,7* | 174 | 63 | 51 | 279 |
| B-RAD 2000 Offset | 1" | 400 | 2.000 | 6 | 4,4* | 139 | 69 | 51 | 244 |
| B-RAD 2000-2 Offset | 1" | 400 | 2.000 | 19 | 5,3* | 193 | 69 | 51 | 298 |
| B-RAD 3400 Offset | 1" | 800 | 3.400 | 3 | 6,4** | 180 | 81 | 51 | 285 |
| B-RAD 4000 Offset | 1" | 815 | 4.000 | 3 | 6,4** | 180 | 81 | 51 | 285 |
| B-RAD 4000-2 Offset | 1" | 815 | 4.000 | 19 | 7,1** | 232 | 81 | 51 | 337 |
| B-RAD 7000 Offset | 1½" | 1.350 | 7.000 | 2 | 9,2** | 190 | 95 | 51 | 295 |
*Weight incl. battery 5.2 Ah (0,7 kg)
** Weight incl. battery 8.0 Ah (1,0 kg)
The battery torque wrench series B-RAD Offset has a very special design. The torque can be set digitally by values of 10 Nm. This battery tool is also available with a two-stage automatic and ideally suited for most applications. Its advantage is the offset gearbox, which allows the tool to reach difficult bolting spaces. The electric motor is brushless. Thereby the lifetime of the tool is increased, because carbon brushes and slip rings do not have to be exchanged. Furthermore these tools can be used for valve actuations. Each torque wrench comes fully calibrated in a storage case and includes reaction arm with 2x retaining ring, 2x battery and quick battery charger.
Options
- Screw position lighting
- Lithium-HD battery with 8,0 Ah
- Modification on series MB-RAD Offset
ACCESSORIES

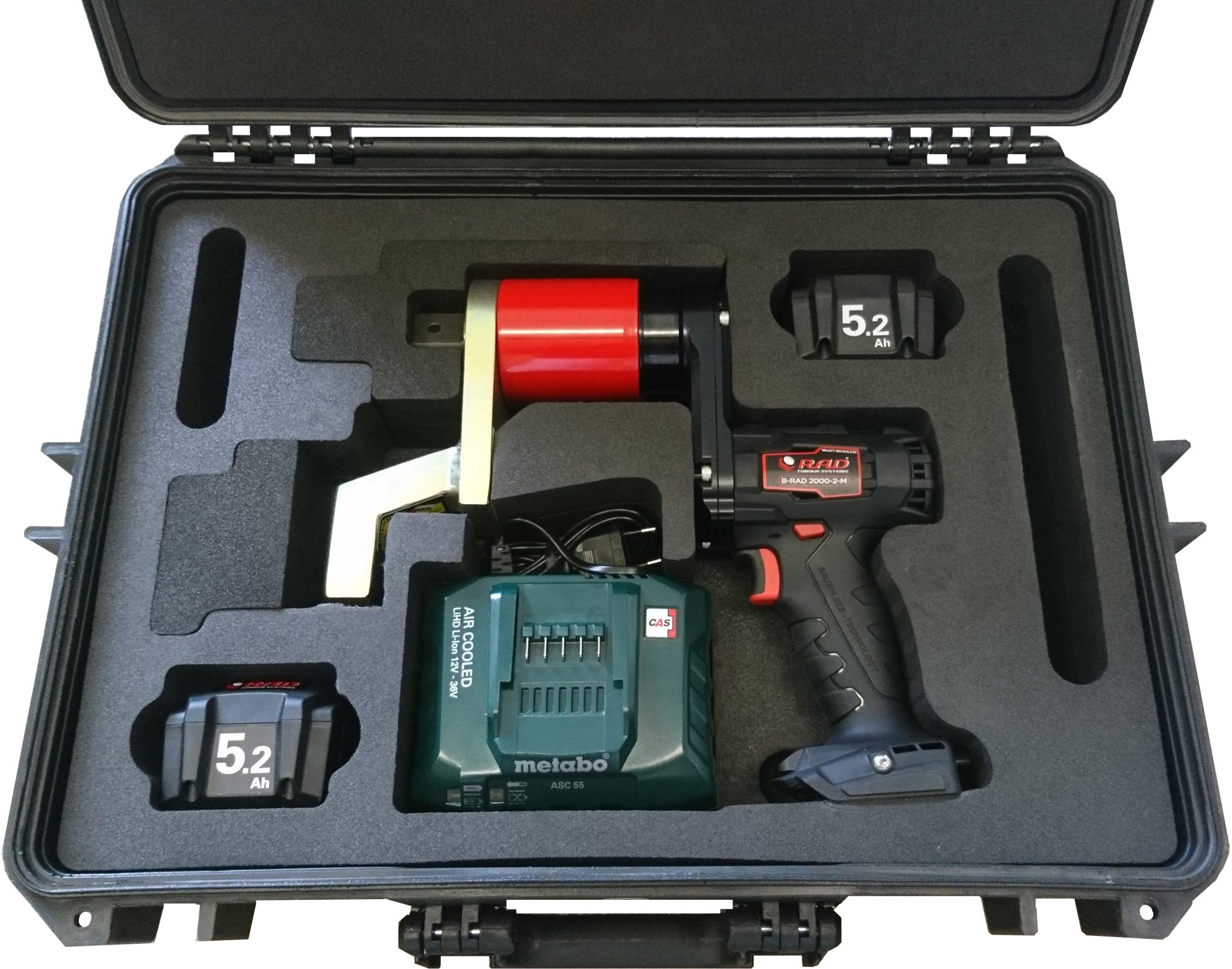

Scope of delivery
- Battery operated torque wrench B-RAD Offset
- Reaction arm with two retaining rings
- Two Lithium-ion batteries with 5,2 Ah/18 V
- Battery charger
- Calibration certificate
- Operation manual
- Tool case
