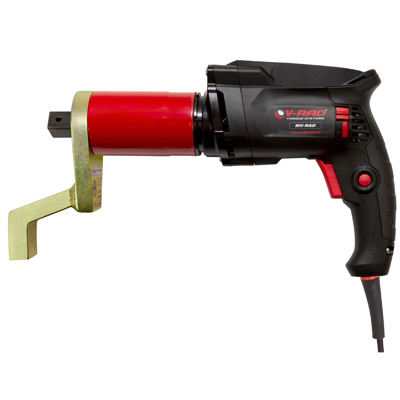

MV-RAD A/-2

Torque/angle controlled shut-off
Repeatability ±3,0 %
Rapid bolting by precision mechanical, high-speed gearbox
Torque Check Function for maintenance optional
Multi-user level password protection
Digital setpoint adjustment for high torque accuracy
Torque control in anticlockwise rotation reduces transmission damages
Intelligent counter for life cycle and maintenance

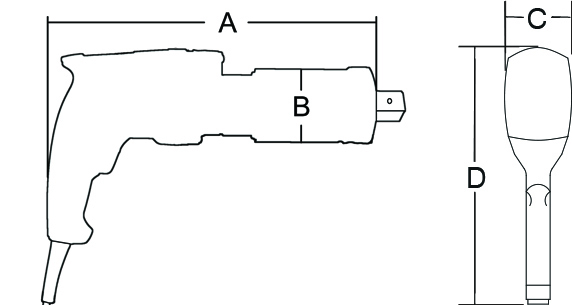

Type	Drive size	Torque [Nm]		RPM [min^-1]	Weight [kg]	Dimensions [mm]
Type	Drive size	min.	max.	RPM [min^-1]	Weight [kg]	A	B	C	D
MV-RAD 14A	¾"	min.	max.	400	1.400	A	B	C	D	36	5,4	485	63	73	209
MV-RAD 31A	1"	500	3.100	30	7,8	510	77	77	216
MV-RAD 31-2*	1"	310	3.100	11	6,7	465	77	77	216
MV-RAD 45-2*	1" & 1½"	450	4.500	6	8,8	495	86	86	221
MV-RAD 70-2*	1½"	700	7.000	4	9,5	429	96	96	226
MV-RAD 80-2*	1½"	800	8.000	4	11,3	492	101	101	228
MV-RAD 110-2*	1½"	2.100	11.000	3	13,1	510	108	108	232

* Gradual adjustment using the torque table. Rotation angle control not possible.

Download data sheet

The electric high speed series MV-RAD A/-2 incorporate a precision engineered high speed gearbox with two speeds. Faster run down and quick reaction point positioning on time is succeed. A very important safety feature is the controlled loosening at counterclockwise rotation. Gearbox damages are reduced thereby. The integrated counter for life time and maintenance cycles informs the operator about upcoming maintenance in time. With an optional, highly sensitive torque check function bolted connections can be checked, without actually tightening the bolt further. Each torque wrench comes with a reaction arm and 2x retaining ring, calibration certificate and manual in a storage case.
