MV-RAD S
- Sensor-controlled torque/angle shut-off
- Absolute accuracy ±1,0 %
- Torque Check Function
- Documentation System
- Angle torque wrench for hard-to-reach places (type MV-RAD 34-90-S)
- Multi-user level password protection
- Digital color display
- Digital setpoint adjustment
- Torque control in anticlockwise rotation reduces transmission damages
- Intelligent counter for life cycle and maintenance
- Selectable menu languages
- ProTight ™ worker guidance system optional
- BoltPilot® optional

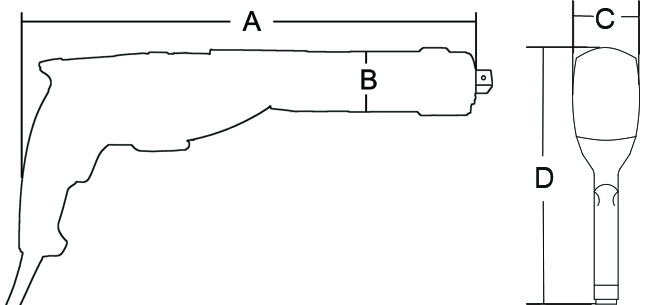

| Type | Drive size | Torque [Nm] | RPM [min-1] | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| min. | max. | A | B | C | D | ||||
| MV-RAD 6-S | ¾" | 65 | 650 | 30 | 4,9 | 465 | 71 | 73 | 213 |
| MV-RAD 14-S | ¾" | 140 | 1.400 | 11 | 5,1 | 465 | 71 | 73 | 213 |
| MV-RAD 14-90-S | ¾" | 140 | 1.400 | 13 | 5,6 | 211 | 71 | 73 | 397 |
| MV-RAD 34-S | 1" | 340 | 3.400 | 4,2 | 7,0 | 510 | 84 | 84 | 220 |
| MV-RAD 34-90-S | 1" | 340 | 3.400 | 5,5 | 7,8 | 259 | 84 | 84 | 403 |
| MV-RAD 45-S | 1" | 450 | 4.500 | 2 | 10,0 | 520 | 94 | 94 | 220 |
| MV-RAD 80-S | 1½" | 800 | 8.000 | 1,5 | 12,7 | 526 | 109 | 109 | 232 |
| MV-RAD 110-S | 1½" | 2.100 | 11.000 | 1 | 15,0 | 538 | 116 | 116 | 236 |

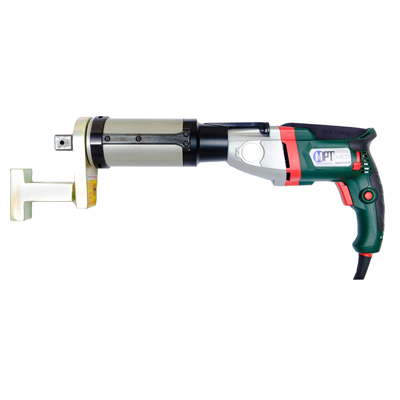

The electric torque wrench MV-RAD S (MED S) has a built-in torque sensor and shuts-off precisely by this sensor. Thereby the tool is insensitive to environment influences, such as friction, temperature or joint hardness. With this torquing tool one can tighten bolts by category A according to VDI/VDE 2862-2. Our MV-RAD S is especially suitable for maintenance work. With an integrated, highly sensitive torque check function bolted connections can be checked, without actually tightening the screw further. On custom demand the tool can be programmed with individual parameters. Each torque wrench comes fully calibrated with documentation system, torque check function, bluetooth adaptor, reaction arm, 2x retaining ring and user manual in a storage case.
Options
- Version as a 120 V machine
- ProTight™ worker guidance system
- BoltPilot®
ACCESSORIES
Scope of delivery
- Electric sensor controlled MV-RAD S
- Reaction arm with two retaining rings
- Documentation System
- Torque Check Function
- Calibration certificate
- Operation manual
- Tool case
