Series MX
- Manual torque multiplier with angeled reaction arm
- Torque range 100-16.000 Nm
- Display deviation ±4,0 %
- Controlled tightening with manual torque wrench
- Loosening of bolts with little effort
- RS-anti backlash device (except MX 8, MX 18)
| Type | Square | Maximum torque [Nm] | Gear ratio | Weight [kg] | Dimensions [mm] | ||||
|---|---|---|---|---|---|---|---|---|---|
| drive | downforce | A | B | C | D | ||||
| MX 8 | ½" | ¾" | 800 | 1 : 3,5 | 1,3 | 65 | 105 | 132 | 130 |
| MX 18 | ¾" | 1" | 1.800 | 1 : 3,6 | 3,0 | 90 | 150 | 188 | 132 |
| MX 28 | ½" | 1" | 2.800 | 1 : 13 | 5,2 | 95 | 200 | 240 | 132 |
| MX 38 | ¾" | 1" | 3.800 | 1 : 13 | 5,2 | 95 | 200 | 240 | 132 |
| MX 50 | ¾" | 1½" | 5.000 | 1 : 17 | 7,0 | 120 | 215 | 272 | 150 |
| MX 80 | ¾" | 1½" | 8.000 | 1 : 49 | 11,5 | 132 | 268 | 344 | 200 |
| MX 120 | ¾" | 1½" | 12.000 | 1 : 58 | 14,0 | 156 | 272 | 348 | 200 |
| MX 160 | ¾" | 2½" | 16.000 | 1 : 75 | 26,0 | 215 | 292 | 370 | 225 |
The manual torque multiplier series MX never fails to impress with its compact design, low weight and flexible use in every application. A built-in shear-off-system protects the gearbox. For this the multiplier is equipped with a torsion pin, which has breaking points and shears off if the torque gets too high. Sheared pins can easily be replaced by the user on site. A replacement torsion pin is included in the delivery. The anti-backlash device stores the torque, which was built by previous tightenings and prevents the tightening tool from being slashed back when released. With a variety of supports and special designs the manual torque multiplier series MX can be used in almost any bolting cases.
Options
- Manual torque multiplier with little implementation and milled or alternatively forged housing

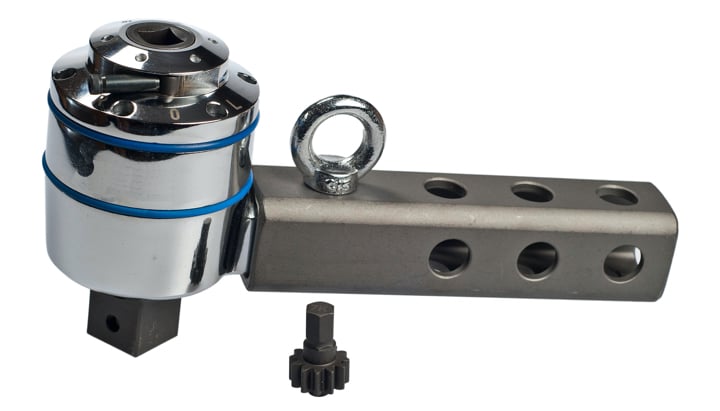

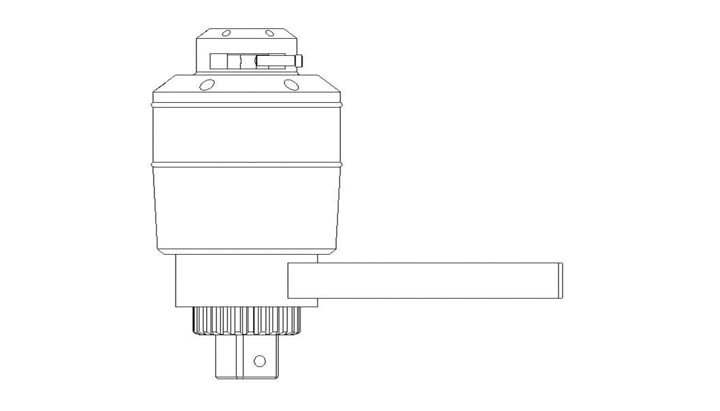

ACCESSORIES
Scope of delivery
- Manual Torque Multiplier MX
- Inclined support
- Replacement-sheared pin
- Torque table
- Operation manual
- Tool case
